注入平台事件插件

DOMEventPluginOrder

injectEventPluginOrder方法的入参, 规定注入事件插件名称的顺序,是一个写死的数组

typescript
const DOMEventPluginOrder = [
  'ResponderEventPlugin',
  'SimpleEventPlugin',
  'EnterLeaveEventPlugin',
  'ChangeEventPlugin',
  'SelectEventPlugin',
  'BeforeInputEventPlugin',
];

Plugin

injectEventPluginsByName方法的入参,就是一个个具体的事件的插件,具体的结构以change事件为例:

typescript
const ChangeEventPlugin = {
  // 具体的eventTypes
  eventTypes: {
    change: {
      // 事件分为2个阶段,捕获阶段和冒泡阶段
      // 一般情况下 我们使用的都是冒泡阶段的事件
      phasedRegistrationNames: {
        // 冒泡阶段
        bubbled: 'onChange',
        // 捕获阶段
        captured: 'onChangeCapture',
      },
      // 依赖 react在绑定change事件的时候,同时还会为当前change事件绑定依赖的事件
      dependencies: [
        TOP_BLUR,
        TOP_CHANGE,
        TOP_CLICK,
        TOP_FOCUS,
        TOP_INPUT,
        TOP_KEY_DOWN,
        TOP_KEY_UP,
        TOP_SELECTION_CHANGE,
      ],
    },
  },
  _isInputEventSupported: isInputEventSupported,
  // 用来生成事件对象的
  extractEvents: function(
    topLevelType,
    targetInst,
    nativeEvent,
    nativeEventTarget,
  ) {

  },
};

injectEventPluginOrder

injectEventPluginOrder方法做了什么?只是单纯的将DOMEventPluginOrder变量进行了一次拷贝, 赋值给了eventPluginOrder

typescript
export function injectEventPluginOrder(
  injectedEventPluginOrder: EventPluginOrder,
): void {
  // 克隆一份 这样的话可以在当前文件动态修改
  eventPluginOrder = Array.prototype.slice.call(injectedEventPluginOrder);
}

injectEventPluginsByName

这个方法主要做了2件事

  1. 生成namesToPlugins对象的数据
  2. 调用recomputePluginOrdering
typescript
export function injectEventPluginsByName(
  injectedNamesToPlugins: NamesToPlugins,
): void {
  let isOrderingDirty = false;
  for (const pluginName in injectedNamesToPlugins) {
    if (!injectedNamesToPlugins.hasOwnProperty(pluginName)) {
      continue;
    }
    const pluginModule = injectedNamesToPlugins[pluginName];
    if (
      !namesToPlugins.hasOwnProperty(pluginName) ||
      namesToPlugins[pluginName] !== pluginModule
    ) {
      namesToPlugins[pluginName] = pluginModule;
      isOrderingDirty = true;
    }
  }
  if (isOrderingDirty) {
    recomputePluginOrdering();
  }
}

namesToPlugins

typescript
const namesToPlugins = {
  ChangeEventPlugin: {
      eventTypes: {
        change: {
          phasedRegistrationNames: {
            bubbled: 'onChange',
            captured: 'onChangeCapture',
          },
          dependencies: [ ... ]
        }
      },
      extractEvents: () => {}
  }
}

recomputePluginOrdering

typescript
function recomputePluginOrdering(): void {
  for (const pluginName in namesToPlugins) {
    // 拿到事件插件的值
    const pluginModule = namesToPlugins[pluginName];
    // 计算索引,这里不存在pluginIndex等于0的索引,因为ResponderEventPlugin不在namesToPlugins里面
    const pluginIndex = eventPluginOrder.indexOf(pluginName);
    // 将pluginModule按顺序放置在plugins数组里面
    // plugins 的索引为0是空的,因为没有ResponderEventPlugin
    plugins[pluginIndex] = pluginModule;
    const publishedEvents = pluginModule.eventTypes;
    for (const eventName in publishedEvents) {
      // 这里的 eventName 就是 eventTypes的键
      // 比如 change事件,就是 ‘change’
      publishEventForPlugin(
        // { phasedRegistrationNames: {...}, dependencies: [...] }
        publishedEvents[eventName],
        // { eventTypes: ..., extractEvents: () => { ... } }
        pluginModule,
        // change
        eventName,
      )
    }
  }
}

publishEventForPlugin

typescript
function publishEventForPlugin(
  dispatchConfig: DispatchConfig,
  pluginModule: PluginModule<AnyNativeEvent>,
  eventName: string,
): boolean {
  eventNameDispatchConfigs[eventName] = dispatchConfig;
  // phasedRegistrationNames 就是事件阶段的名称 bubbled 、captured 等
  const phasedRegistrationNames = dispatchConfig.phasedRegistrationNames;
  if (phasedRegistrationNames) {
    for (const phaseName in phasedRegistrationNames) {
        // phaseName 就是 bubbled 、captured
      if (phasedRegistrationNames.hasOwnProperty(phaseName)) {
        // phasedRegistrationNames 就是 React Dom节点接收的事件的props的名称
        // 例如 onChange onClick
        const phasedRegistrationName = phasedRegistrationNames[phaseName];
        publishRegistrationName(
          // onChange
          phasedRegistrationName,
          // { eventTypes: ..., extractEvents: () => { ... } }
          pluginModule,
          // change
          eventName,
        );
      }
    }
    return true;
  } else if (dispatchConfig.registrationName) {
    publishRegistrationName(
      dispatchConfig.registrationName,
      pluginModule,
      eventName,
    );
    return true;
  }
  return false;
}

publishRegistrationName

typescript
function publishRegistrationName(
  registrationName: string,
  pluginModule: PluginModule<AnyNativeEvent>,
  eventName: string,
): void {
  registrationNameModules[registrationName] = pluginModule;
  registrationNameDependencies[registrationName] = pluginModule.eventTypes[eventName].dependencies;
}

生成的数据结构如下

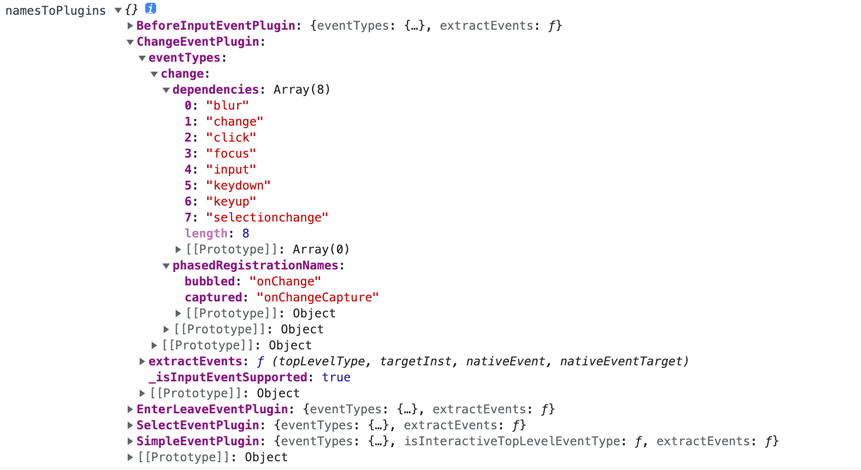

namesToPlugin

namesToPlugin

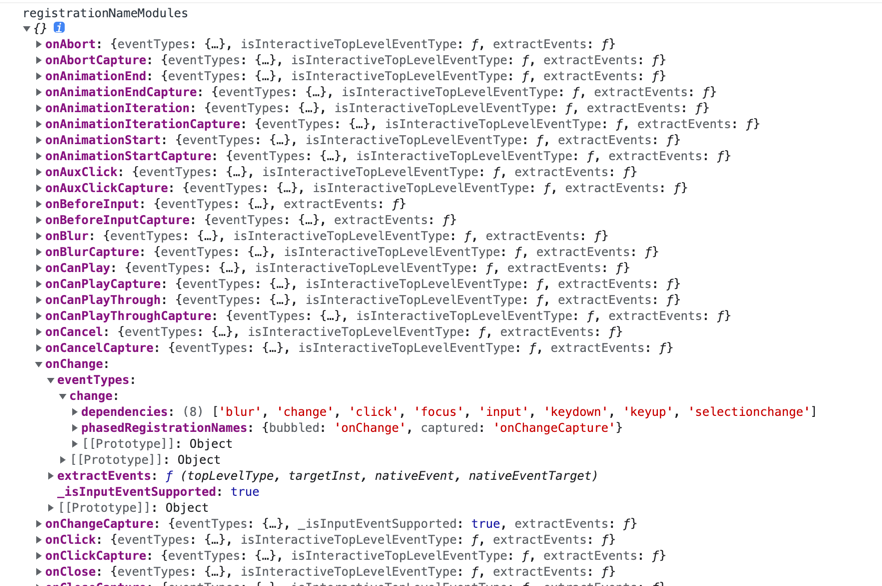

registrationNameModules

registrationNameModules

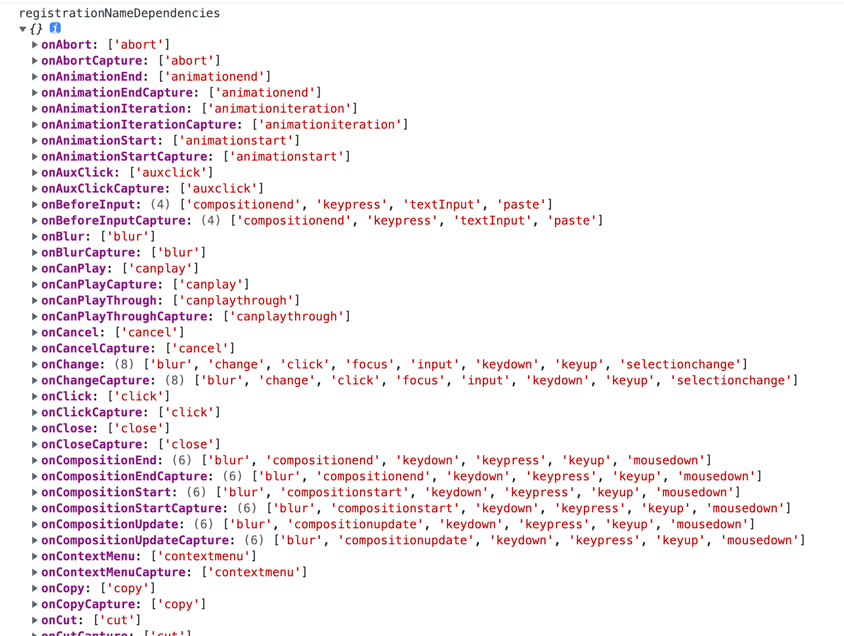

registrationNameDependencies

registrationNameDependencies

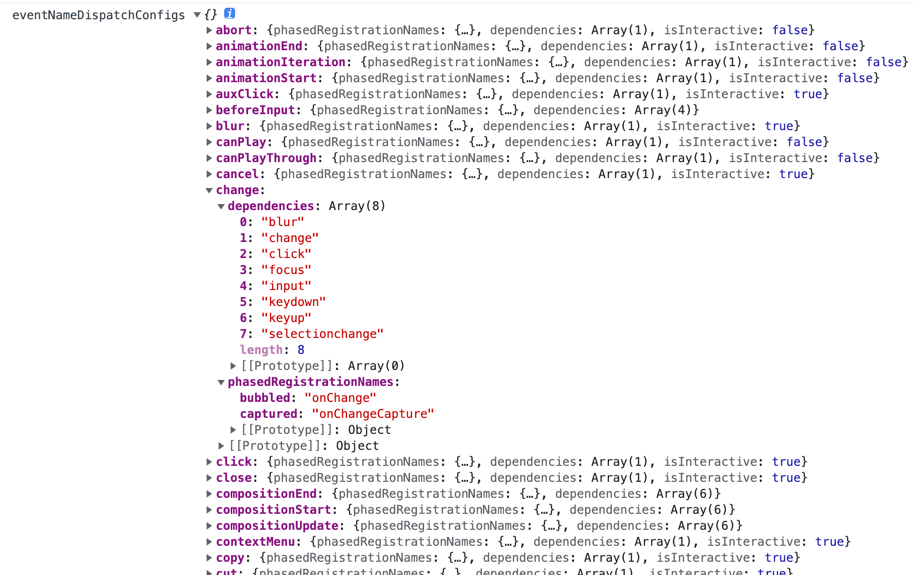

eventNameDispatchConfigs

eventNameDispatchConfigs
